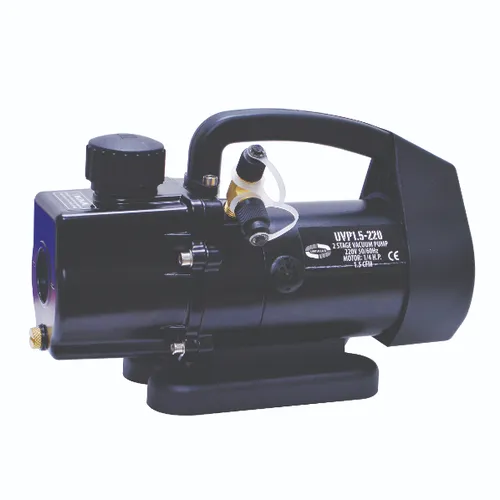

Name: Uniweld 1.5 CFM Vacuum Pump UVP1.5
SKU: UVP1.5
Availability: InStock

Uniweld’s high performance UVP Vacuum Pump has been designed and engineered to provide you with reliable service and the latest in vacuum pump technology. The UVP 1.5 pump is built for deep vacuum service on appliances, A/C, automotive and commercial systems using CFC, HCFC and HFC refrigerants in conjunction with mineral oil, ester oil, alkybenzene oil and PAG oil as lubricants.

Specification	Details
Package Weight	10.15 kg
Color	Black
Phase	Single
Max Flow Rate	42 litre/min
Type	Double stage vacuum pump
Number Of Stages	Double Stage
Model Name/Number	UVP1.5-220
Oil Tank Capacity	140 ml
Size/Dimension	10 x 6.8 x 3.5 Inch
Material	Alloy
Power	1/4 HP
Usage/Application	Industrial
Brand	Uniweld

More Specification:-

Specification	Details
Pump Specifications	UVP1.5
Free Air Displacement	1.5 CFM, 40.5 litter/min
Number of Stages	2-Stage Rotary Vane
Field Micron Rating	38 Microns
Intake Fittings	1/4” Male Flare & 1/2” Acme
Thermal Overload Protection	1/4 HP
Voltage	110/220V – 50/60Hz
Oil Capacity	4.7 Ounces (140 ml)
Power Cord	72” (1.83m)
Dimensions	10.23” x 3.50” x 6.40” (26 x 9 x 16.5 cm)
Weight	10 Lbs. (4.54 kg)
Shipping Weight	14 Lbs. (6.35 kg)
Color	Black
