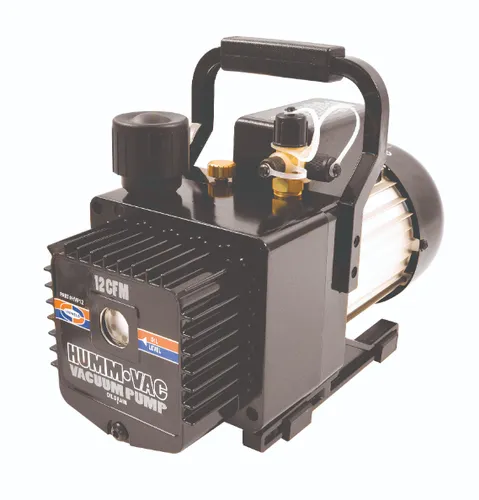

Uniweld 12CFM Vacuum Pump HVP12
185 Views
₹35,000.00
Uniweld’s Humm• Vac 2-stage vacuum pumps feature a new and improved rotary vane vacuum pump cartridge that has the power and capacity needed for a wide range of service applications as well as robust construction for a long service life.
- Gas Ballast design mixes moisture laden air passing through pump with relatively dry air so compression doesn’t cause condensation use of vacuum pump oil.
- 1/4″, 3/8″, and 1/2″ male flare intake fittings with tethered caps, and check valve, easy to read sight glass ,easy access oil fill port, and angled oil drain valve for Vaster, more complete draining of the reservoir.
Availability: 69 in stock
Buy Now
Add to cart
Product Description
Uniweld’s HVP12 HUMM•VAC vacuum pump removes moisture and dehydrates a system quickly and efficiently. The HVP12 model operates at 12 CFM, has an oil capacity of 27.7 ounces (820 ml), and a micron rating of 15. All HUMM•VAC models include the following: non-slip rubber hand grip, dual voltage power box (110/220), slant back center balanced handle, powerful low decibel fan cooled motor, heat dispersing motor and reservoir fins, sure grip rubber foot pads, low profile easy access oil drain, beveled reservoir pan for complete oil drainage, large sight glass for easy oil monitoring, oil fill port, exhaust dome, and 3 way intake fitting (1/4”, 3/8”, & 1/2” Male Flare) with tethered caps
HVP12 Specifications
| Specification | Details |
|---|---|
| Power Source | Electric |
| Color | Black |
| Voltage | 110 – 220 V |
| Frequency | 50 – 60 Hz |
| Phase | Single phase |
| Max Flow Rate | 350 litre per minute |
| Number Of Stages | Double Stage |
| Model Name/Number | HVP12 |
| Power | AC |
| Usage/Application | Air-conditioning and Refrigeration |
| Brand | Uniweld |
HVP12 Technical Specifications
| Specification | Details |
|---|---|
| Free Air Displacement | 12.0 CFM, 340 liter/min. |
| Number of Stages | 2-Stage Rotary Vane |
| Factory Micron Rating | 15 Microns |
| Intake Fittings | 1/4”, 3/8” and 1/2” Male Flare |
| Motor with Thermal Overload Protection | 1 HP |
| Voltage | 110V – 50Hz 7.4 Amps / 60Hz 7.6 Amps 220V – 50Hz 3.6 Amps / 60Hz 3.8 Amps |
| Oil Capacity | 33.8 oz. (1000 ml) |
| Power Cord U.S.–Type B Plug | 72″ (1.83 m) |
| Dimensions | 16.99” x 6.82” x 10.86” (43.15 cm x 17.32 cm x 27.58 cm) |
| Weight | 38.6 lbs. (15.88 kg) |
| Shipping Weight | 41.7 lbs. (18.9 kg) |
| Color | Black |
